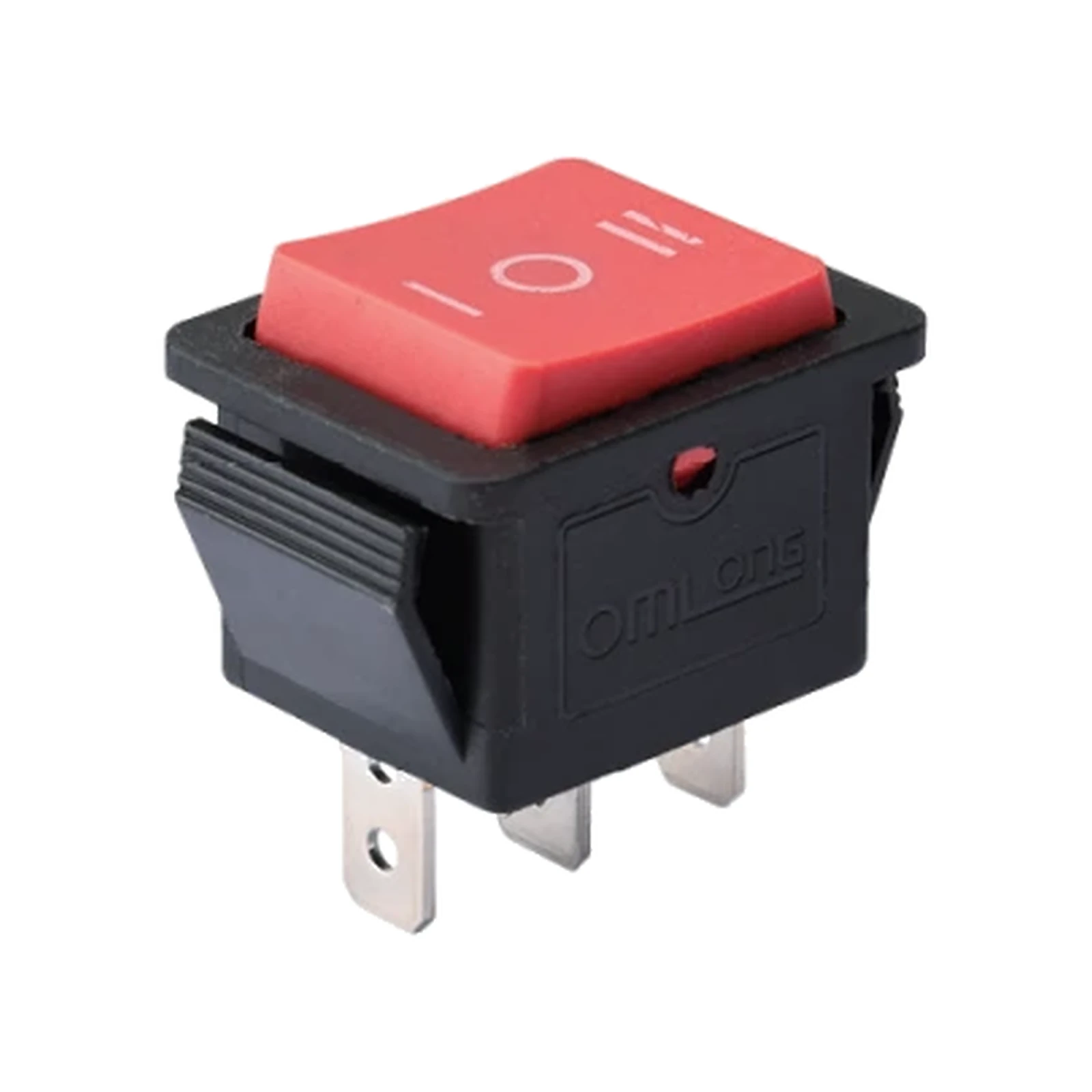

KCD4-201-3P
跷板开关 · Series: kcd
Electrical Ratings
16(4)A 250VAC T8516A 250VAC / 16A 125VAC20(8)A 250VAC / 25A 250VAC
Specifications
| Rated Values | 16(4)A 250VAC T85; 16A 250VAC / 16A 125VAC; 20(8)A 250VAC / 25A 250VAC |
|---|---|
| Contact Resistance | <20 mΩ |
| Insulation Resistance | >100 MΩ |
| Dielectric Strength | >1800 VAC / 3 s |
| Electrical Life | >10000 cycles |
| Overall Dimensions | 24.949 x 31.991 mm; body height 17.504 mm; drawing also shows 34.459 mm total width |
| Terminal Type | 6.3 mm TAB, 0.8 mm thick (series options 1-5) |
Catalog page 6
Inquire about KCD4-201-3PFrequently Asked Questions
What is a rocker switch?
A rocker switch is an electrical switch that rocks back and forth to open or close a circuit. AURMETEC manufactures KCD1, KCD3 and KCD4 series rocker switches rated up to 16(4)A 250VAC.
What certifications do AURMETEC switches have?
AURMETEC switches carry certifications applicable to target markets, including UL, cUL, CE, ENEC, VDE, CCC, KC and RoHS. Contact us to confirm certification for a specific model.
What is the MOQ (minimum order quantity)?
MOQ depends on the model. We support samples and small-batch orders — contact us with your model number for MOQ and lead time.
Does AURMETEC support OEM/ODM customization?
Yes. AURMETEC supports OEM/ODM customization of rocker switches and power inlets, including custom ratings, terminals and branding.
