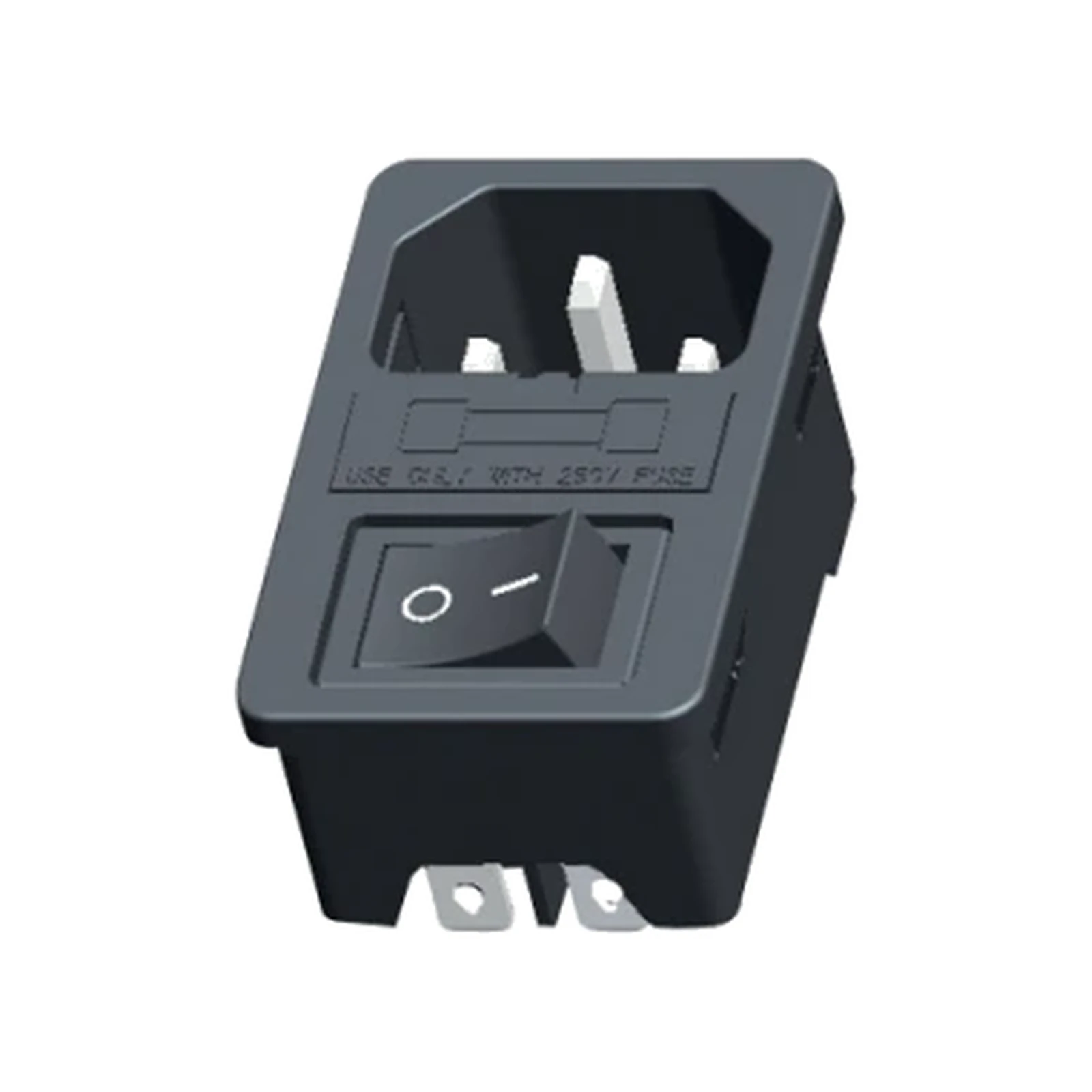

AC-14-F
AC 电源插座 · Series: ac-14-f-receptacle
Electrical Ratings
15A 250VAC T105 UL/cUL10A 250VAC ENEC/VDE/CCC/KCIEC 60320 C14
Specifications
| Rated Values | 15A 250VAC T105 UL/cUL; 10A 250VAC ENEC/VDE/CCC/KC; IEC 60320 C14 |
|---|---|
| Insulation Resistance | 100 MΩ at 500 VDC / 1 min |
| Dielectric Strength | 2500 VAC / 5 s |
| Overall Dimensions | 30 x 41 x 38.5 mm |
| Terminal Type | F/S terminal options according to AC-14 order code |
Catalog page 10
